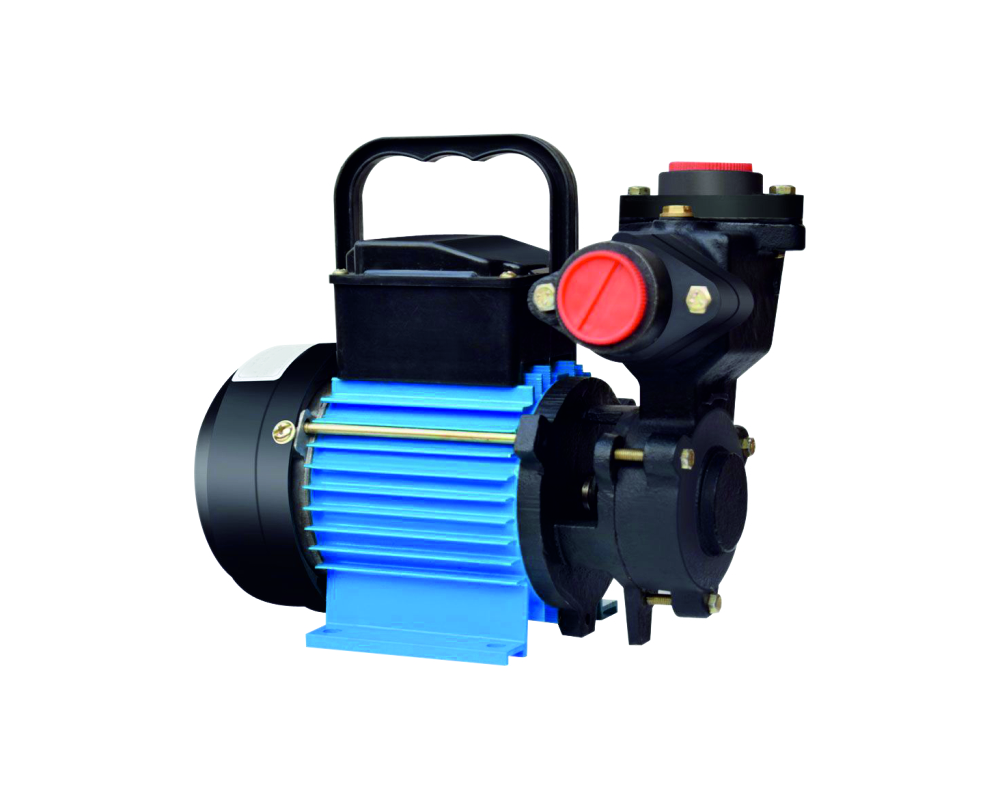

Self Priming Pump

TECHNICAL SPECIFICATION

H.P. Range	0.5 to 1.5 H.P. Single Phase
Operating Head Range	6 to 42 Meter
Operating Discharge Range	480 to 3300 LPH
Operating Voltage Range	180 to 240 Volt Single Phase
Rated Volts / Frequency	220 Volt /50 Hz, +6% & -15% in Single Phase
Max. Temp. of Liquid	40 ℃
Max. Permissible Amount of Sand in the Water	50 Grams/Subic Meter Water

Motor Body	Extruded Aluminium With Powder Coated / Fg200 Cast Iron body
Motor & Pump Shaft	EN-8 / S.S. 410
Stamping	CRC / CRNGO
Rotor	Die casted Aluminium
Winding Wire	EC Grade pure Copper
Journel Bearing	Double Shielded Ball Bearing
Housing, Bracket & Casing	FG 200 series Grade cast iron
Impeller	Brass

Compactly designed pump set for easy handling and installation.
High-grade cast iron for a better life even in heavy and contaminated water.
Front & Back side carbon bearing with Stainless Steel Thrust Plate.
CRNO M47 electrical sheet stamping for lower power consumption and higher product life.
Dynamically Balancing Rotating part to ensure miniminimum noise and vibration-free operation.
Non-overloading power characteristic for safety of motor.
Replaceable wearing parts.
Highly durable water cooled rewindable motor.
